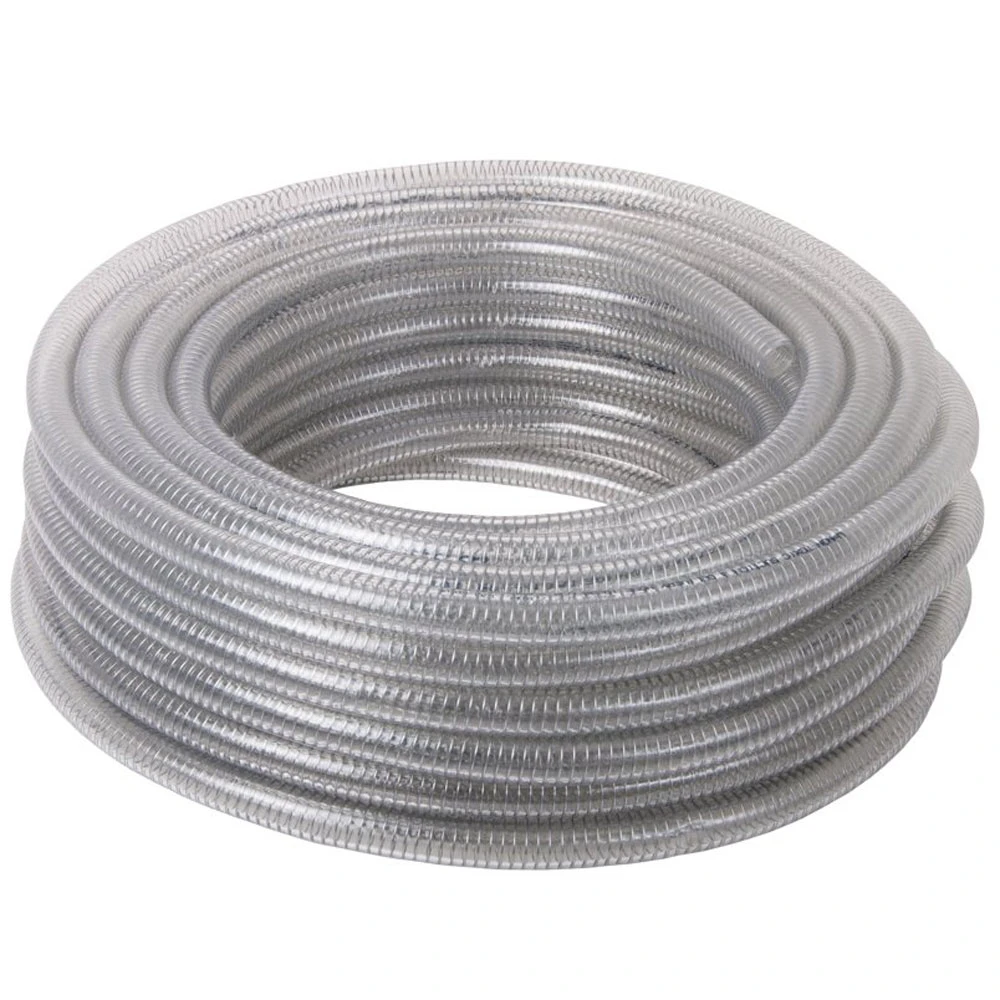

Wire Reinforced Clear PVC Suction & Delivery Hose 30 Mtr Coil

Wire Reinforced Clear PVC Suction & Delivery Hose 30 Mtr Coil –

Wire Reinforced Clear PVC, suction and delivery hose suitable for use with a wide variety of uses, in agriculture

and industry and many other areas

Strong flexible and smooth plasticized PVC tubing

Translucent PVC with galvanised steel wire helix

Temperature range from -5 c to +60 c

Safety factor of 3 – 1

Hose coils may be shipped separately from other items ordered in the same order.

Available is sizes 3/8” to 4”

Branding – Bosphorous



Part Number	(Hose	Size)	Pressure	Pressure	(Bend Radius)	Weight	Inner/Outer
	Inches	mm	PSI	Bar	mm	gr/m	size  mm/mm
BWR-38-30	3/8″	10mm	304	21	20mm	160g	10/16
BWR-13-30	1/2”	13mm	304	21	25mm	180g	12/18
BWR-19-30	3/4”	19mm	217	15	45mm	330g	19/26
BWR-25-30	1”	25mm	217	15	60mm	510g	25/35
BWR-32-30	1 1/4”	32mm	188	13	75mm	650g	32/40
BWR-38-30	1 1/2”	38mm	174	12	90mm	800g	38/47
BWR-51-30	2”	51mm	130	9	125mm	1200g	51/61
BWR-76-30	3”	76mm	87	6	195mm	2500g	76/90
BWR-102-30	4”	102mm	87	6	300mm	3400g	102/116



• • Weight

    5.4 kgs

  • SKU

    BWR-10-30

• Hose Size

  3/8″ x 30 mtr coil – BWR-10-30, 1/2” x 30 mtr Coil – BWR-13-30, 5/8 x 30 mtr coil BWR-16-30, 3/4” x 30 mtr Coil- BWR-19-30, 1” x 30 mtr Coil – BWR-25-30, 1 1/4” x 30 mtr Coil – BWR-32-30, 1 1/2” x 30 mtr Coil – BWR-38-30, 2” x 30 mtr Coil – BWR-51-30, 3” x 30 mtr Coil – BWR-76-30, 4” x 30 mtr coil – BWR-102-30
