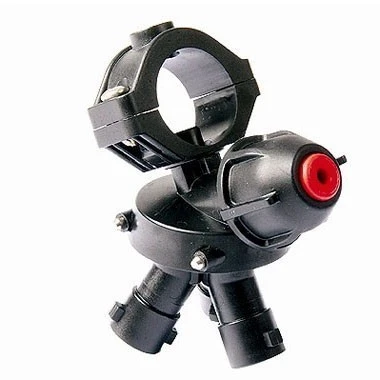

Hypro Proflo EF3 Triple Nozzle Body EPDM

Hypro Proflo EF3 Triple Nozzle Body, EPDM DCV

These nozzle holders come fitted with the Red coloured Diaphragm Check Valve and a Red coloured DCV rubber, that has a centre locating pip, rated at 0.55 Bar for instant shut off

 These nozzle bodies are manufactured from Polyacetal and Nylon for performance and durability

 They all have bolted top Clamps to fit all common pipe sizes : 1/2″, 3/4″, 1″, nominal bore sprayline or pipe

They have a 10mm spigot, with an operating pressure of upto 20 bars

 The Hypro EF3 Nozzle Caps fit the Hypro PROFLO range of nozzle bodies

NB:- The sizes are the nominal bore of the pipe not the outside diameter of the pipe (See “Technical Data Tab” for correct pipe to nozzle holder sizing)

• • Weight

    0.13 kgs

  • SKU

    4222N-B322

• Manufacturer

  Pentair Hypro

• Brand

  Hypro

• Nozzle Holder Pipe Size

  4222N-B322 1/2″ Triplet, 4222N-B323 3/4″ Triplet, 4222N-B324 1″ Triplet
