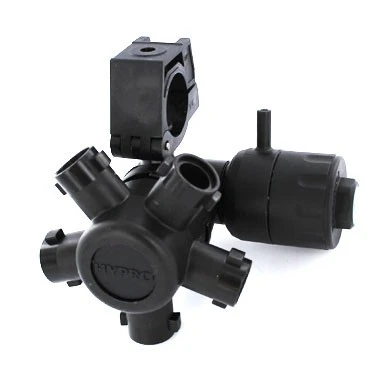

Hypro Proflo EF3 5 Way Nozzle Body, PROSTOP Version

Hypro Proflo EF3 5 Way Nozzle Body, PROSTOP Version

These nozzle holders come fitted with the Hypro PROSTOP Air operated Valve

Air to open – Spring to close. These Prostop valves are closed when not pressurised.

 These nozzle bodies are manufactured from Polyacetal and Nylon for performance and durability

 They all have hinged top Clamps to fit all common pipe sizes : 1/2″, 3/4″, 1″, nominal bore sprayline or pipe

 They have a 10mm spigot, with an operating pressure of upto 20 bars

 They also come complete with self tapping screw and spigot sealing washer

 Spare parts available

 The Hypro EF3 Nozzle Caps fit the Hypro PROFLO range of nozzle bodies

NB:- The sizes are the nominal bore of the pipe not the outside diameter of the pipe (See “Specifications” for correct pipe to nozzle holder sizing)

• • Weight

    0.16 kgs

  • SKU

    4223N-B522PS

• Manufacturer

  Pentair Hypro

• Brand

  Hypro

• Nozzle Holder Pipe Size

  4223N-B522PS 1/2″ 5 Way Body, 4223N-B523PS 3/4″ 5 Way Body, 4223N-B524PS 1″ 5 Way Body
