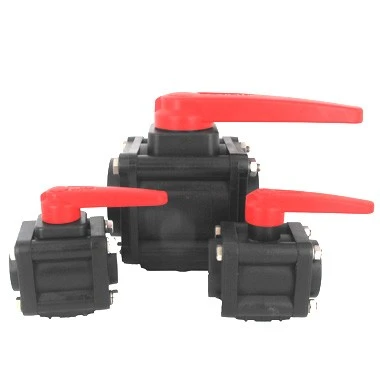

Arag 2 Way Bolted Ball Valves Female BSP Threads 1″ – 3″ Sizes
Commonly used for a wide variety of agricultural and industrial
applications, Hypro offer a wide range of ball valves, both manual and
electric. The Hypro range of valves are constructed from glass reinforced
polypropylene for strength, durability and excellent resistance to
agrochemicals and many industrial chemicals. All Hypro valves are
“full-bore” providing minimum flow restriction and minimum pressure loss
All sizes have bottom mounting as shown in the additional image.
The maximum pressure of each ball valve size are as below
Pressures are indicated as :- Bar (PSI)
1” BSP(F) 453004A44 16 (240)
11/4” BSP(F) 453004A55 16 (240)
11/2” BSP(F) 453005A66 10 (150)
2” BSP(F) 453006A77 10 (150)
3” BSP(F) 453007A99 8 (116)
2” BSP(F) 56454137 10 (150)
-
- Weight
0.55 kgs
- SKU
45300 4A44
-
- Brand
Arag
- Ball Valve Size
1” Ball Valve 45300 4A44, 1 1/4” Ball Valve 45300 4A55, 1 1/2” Ball Valve 45300 5A66, 2” Ball Valve 45300 6A77, 2 1/2” Ball Valve 45300 7A88, 3″ Ball Valve 453007A99
