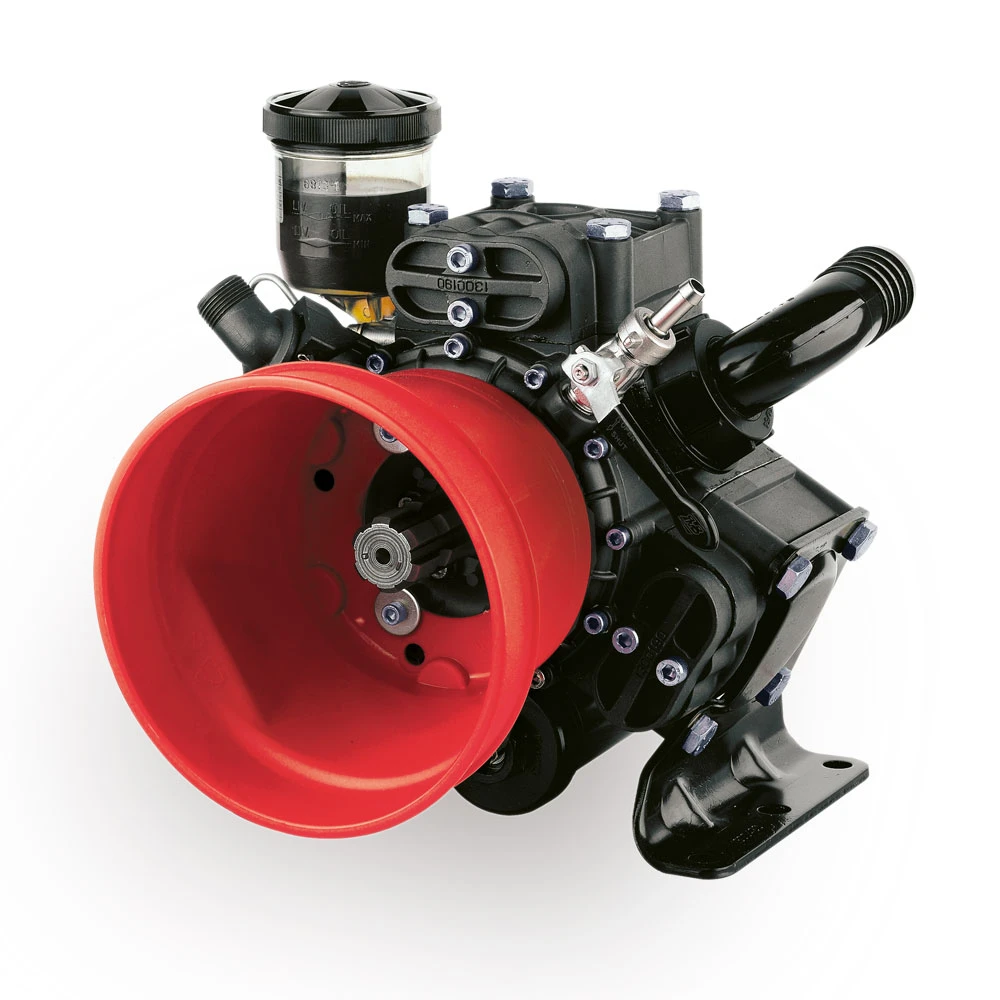

Annovi Reverberi AR 813 AP C/C Diaphragm Pump Blueflex 32106

Annovi Reverberi AR 813 AP C/C Diaphragm Pump Blueflex 32106

• Semi-hydraulic three-diaphragm pump, for use on sprayers for high pressure pesticide spraying in orchards and vineyards. Parts in contact with pumped liquids in anodized aluminium, and AISI 303/304.
• Diaphragms in BlueFlex™. Seals in NBR. Die-cast casing with oil-immersed mechanism and clear plastic tank for visual level checking.
• Fitted with air-hydraulic damper for smoother operation and less hammer effect in the delivery circuit. Remote level monitoring sensor on request.
• Remote oil tank installation kit available on request. Oil drainage stopper. Pistons with ring for a more efficient “oil cushion” system to protect the diaphragm.
• New-design diaphragm cut-out system to prevent contact tearing even in heavy-duty operating conditions. Spherical sector profile valves for lower flow resistance and improved volumetric efficiency.
• Mass-produced safety valve and cardan protection.
• Metal fasteners with galvanised finish.
• Available with reduction gearboxes for internal combustion engines and flanges for hydraulic motors, hydraulic pumps, overgears.

Technical Specification:

• AR Code 32106
• Version AP C/C
• Diaphragms 3
• Max flow (lpm) 79.9
• Max flow (gpm) 21.1
• Max Pressure (bar) 50
• Max Pressure (psi) 725
• Power (Hp) 8.8
• RPM 550
• Net weight (Kg) 20.5
• Size (mm) – L360
• Size (mm) – H335
• Size (mm) – W472
• Suction (mm)ø 40
• Outlet (mm)ø 34
• Max temperature (°C)60

• • Weight

    20 kgs

  • SKU

    32106

• Brand

  Annovi Reverberi
