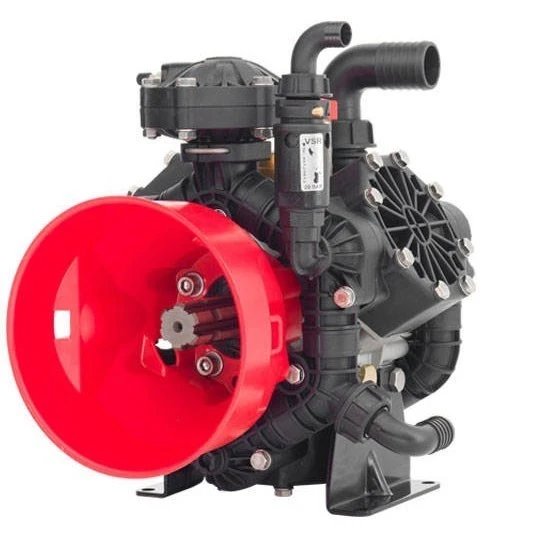

Annovi Reverberi AR 80 BP C Diaphragm Piston Pump 1291

Annovi Reverberi AR 80 BP C Diaphragm Piston Pump 1291

• Semi-hydraulic three-diaphragm pump, for use in low pressure systems. Parts in contact with pumped liquids in reinforced polypropylene, AISI 303/304. Diaphragms in NBR.
• Seals in NBR. Die-cast casing with oil-immersed mechanism and clear plastic tank for visual level checking. Remote oil tank installation kit available on request.
• Fitted with air-hydraulic damper for smoother operation and less hammer effect in the delivery circuit. Oil drainage stopper. Pistons with ring for a more efficient “oil cushion” system to protect the diaphragm.
• New-design diaphragm cut-out system to prevent contact tearing even in heavy-duty operating conditions.
• Spherical sector profile valves for lower flow resistance and improved volumetric efficiency.
• Rugged feet secured to pump casing. Mass-produced safety valve and cardan protection. Geomet metal fasteners.

Technical Specification:

• AR Code 1291
• Version C
• Diaphragms 3
• Max flow (lpm) 76.4
• Max flow (gpm) 20.2
• Max Pressure (bar) 20
• Max Pressure (psi) 290
• Power (Hp) 3.4
• RPM 550
• Net weight (Kg) 14
• Size (mm) – L341
• Size (mm) – H369
• Size (mm) – W474
• Suction (mm)ø 40
• Outlet (mm)ø 25
• Max temperature (°C) 60

• • Weight

    14 kgs

  • SKU

    1291

• Brand

  Annovi Reverberi
