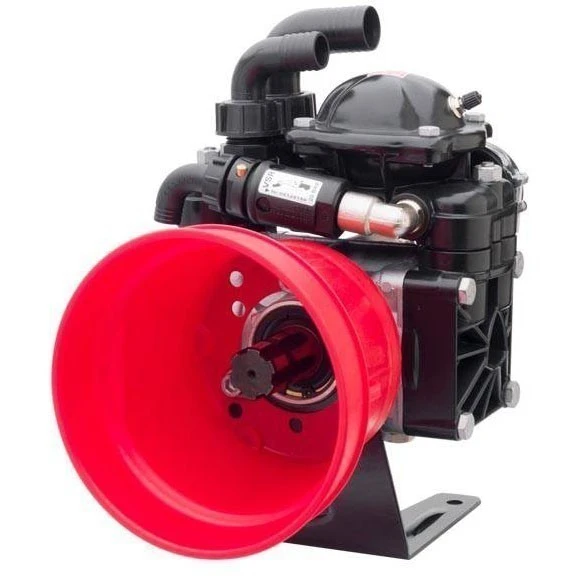

Annovi Reverberi AR 70 BP Diaphragm Piston Pump 1200

Annovi Reverberi  AR 70 BP Diaphragm Piston Pump 1200

• Semi-hydraulic two-diaphragm pump, for use in low pressure systems. Parts in contact with pumped liquids in plastic-coated aluminium Rilsan and AISI 303/304. Diaphragms in NBR. Seals in NBR. Die-cast casing with oil-immersed mechanism and clear plastic tank for visual level checking.
• Remote oil tank installation kit available on request. Fitted with air-hydraulic damper for smoother operation and less hammer effect in the delivery circuit. Oil drainage stopper. Pistons with ring for a more efficient “oil cushion” system to protect the diaphragm. Spherical sector profile valves for lower flow resistance and improved volumetric efficiency. Rugged feet secured to pump casing.
• Mass-produced safety valve and cardan protection. Geomet metal fasteners.

Technical Specification:

• AR Code1200
  VersionC
  Diaphragms2
  Max flow (lpm)74.1
  Max flow (gpm)19.6
  Max Pressure (bar)20
  Max Pressure (psi)290
  Power (Hp)3.4
  RPM550
  Net weight (Kg)11.8
  Size (mm) – L232
  Size (mm) – H335
  Size (mm) – W245
  Suction (mm)ø 30
  Outlet (mm)ø 25
  Max temperature (°C)60

• • Weight

    10 kgs

  • SKU

    1200

• Brand

  Annovi Reverberi
