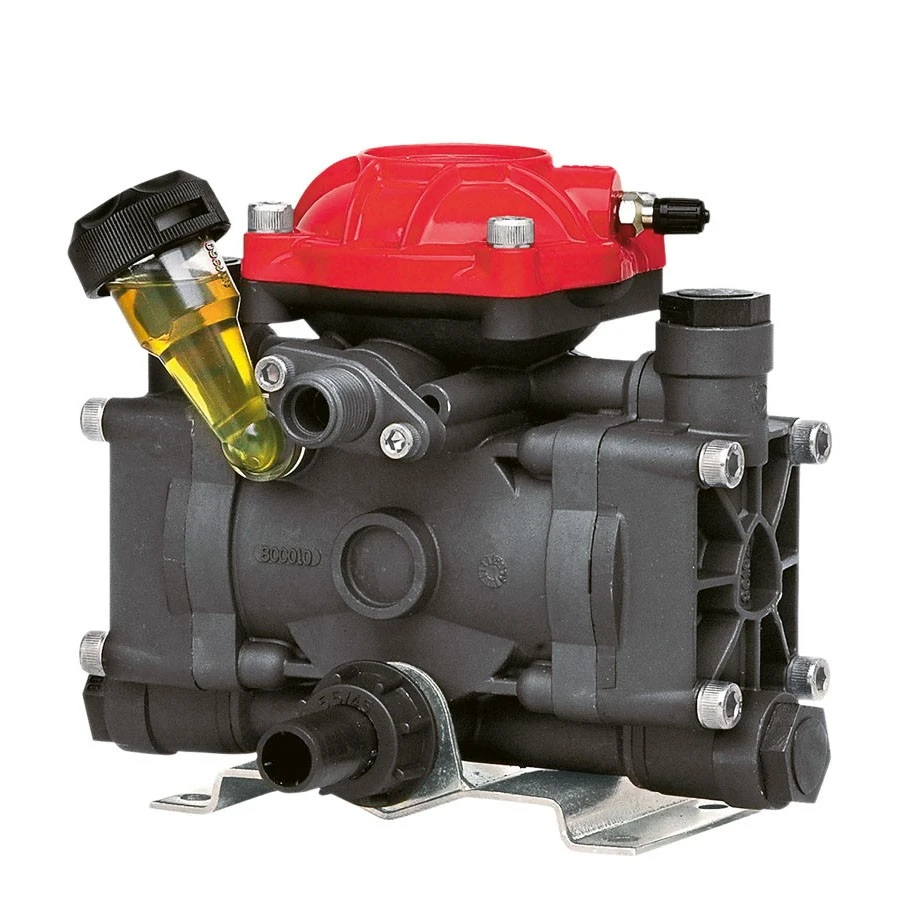

Annovi Reverberi AR 252 SP Diaphragm Pump 32093

Annovi Reverberi AR 252 SP Diaphragm Pump 32093

• Semi-hydraulic two-diaphragm pump, for use in the gardening or semi-professional agricultural sectors. Trolley-mounted in combination with electric motors or internal combustion engines for gardening, and small sprayers for medium-pressure pesticide treatments in gardens, greenhouses, orchards or vineyards.
• Parts in contact with pumped liquids in anodized aluminium, and AISI 303/304. Diaphragms in BlueFlex™. Seals in NBR. Die-cast casing with oil-immersed mechanism and clear plastic tank for visual level checking.
• Fitted with air-hydraulic damper for smoother operation and less hammer effect in the delivery circuit.
• Pistons with ring for a more efficient “oil cushion” system to protect the diaphragm.
• Metal fasteners with galvanised finish.
• Available with reduction gearboxes for electric motors or internal combustion engines and flanges for hydraulic motors or small cultivating machines.

Technical Specification:

• AR Code 32093
• Version SP SGC
• Diaphragms 2
• Max flow (lpm) 24.6
• Max flow (gpm) 6.5
• Max Pressure (bar) 25
• Max Pressure (psi) 362
• Power (Hp) 1.42
  RPM 650
• Net weight (Kg )4
• Size (mm) – L222
• Size (mm) – H237
• Size (mm) – W248
• Suction (mm)ø 20
• Outlet (mm)ø 12
• Max temperature (°C) 60

• • Weight

    10 kgs

  • SKU

    32093

• Brand

  Annovi Reverberi
