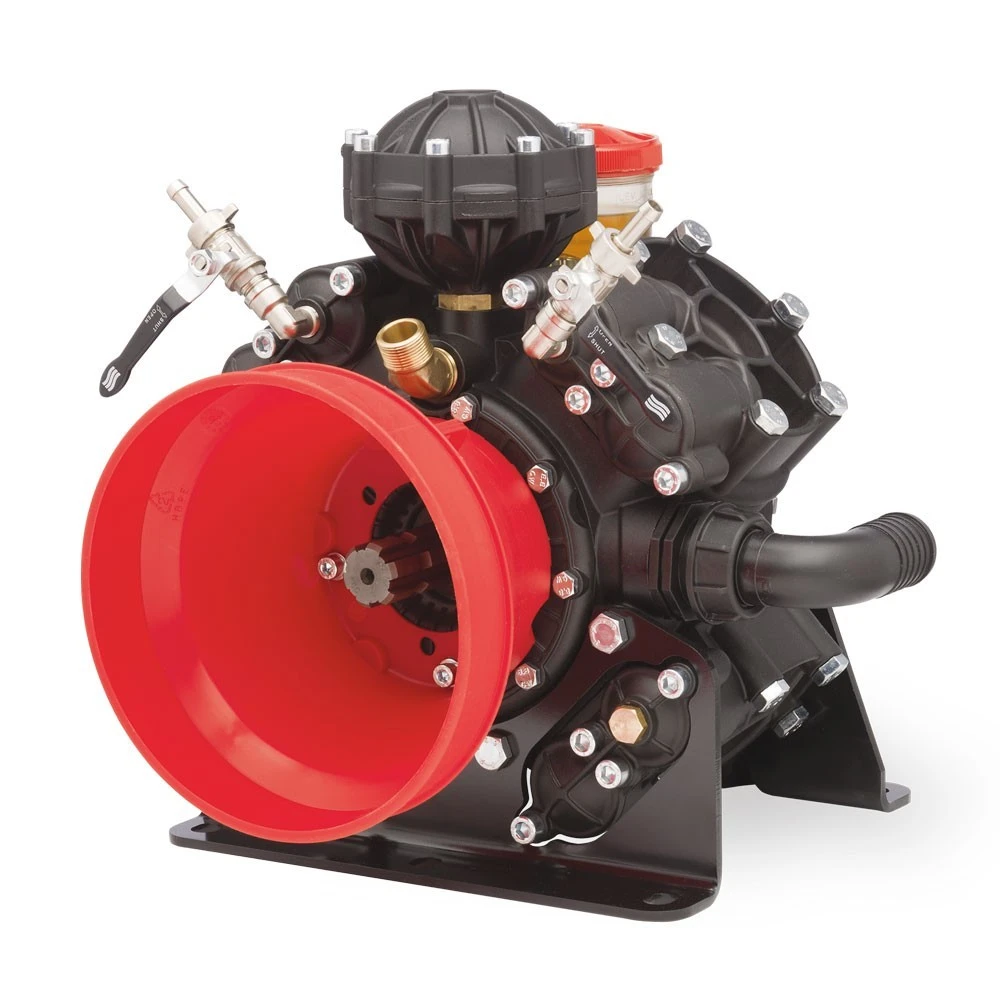

Annovi Reverberi AR 1604 AP C/C Diaphragm Pump 718

Annovi Reverberi AR 1604 AP C/C Diaphragm Pump 718

• Semi-hydraulic four-diaphragm pump, for use on sprayers for high pressure pesticide spraying in orchards and vineyards. Parts in contact with pumped liquids in anodized aluminium, and AISI 303/304.
• Diaphragms in NBR. Seals in NBR. Die-cast casing with oil-immersed mechanism and clear plastic tank for visual level checking.
• Fitted with air-hydraulic damper for smoother operation and less hammer effect in the delivery circuit.
• Remote oil tank installation kit available on request. Oil drainage stopper. Pistons with ring for a more efficient “oil cushion” system to protect the diaphragm.
• New-design diaphragm cut-out system to prevent contact tearing even in heavy-duty operating conditions.
• Spherical sector profile valves for lower flow resistance and improved volumetric efficiency.
• Mass-produced safety valve and cardan protection. Metal fasteners with galvanised finish.

Technical Specification:

• AR Code 718
• Version AP C/C
• Diaphragms 4
• Max flow (lpm) 153
• Max flow (gpm) 40.4
• Max Pressure (bar) 50
• Max Pressure (psi) 725
• Power (Hp) 18.6
• RPM 550
• Net weight (Kg) 38
• Size (mm) – L432
• Size (mm) – H413
• Size (mm) – W512.5
• Suction (mm)ø 40
• Outlet (mm)ø 34
• Max temperature (°C) 60

• • Weight

    20 kgs

  • SKU

    718

• Brand

  Annovi Reverberi
